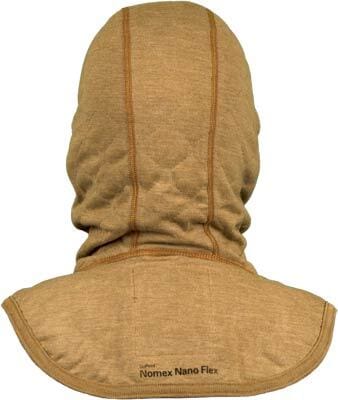

  • 39709 00 194071 BarriAire Back thumb

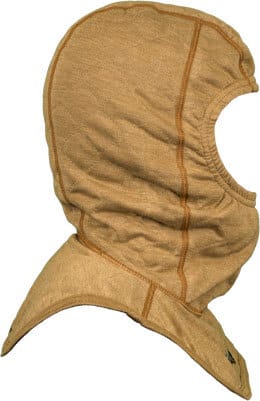

  • 39709 00 194071 BarriAire Side thumb

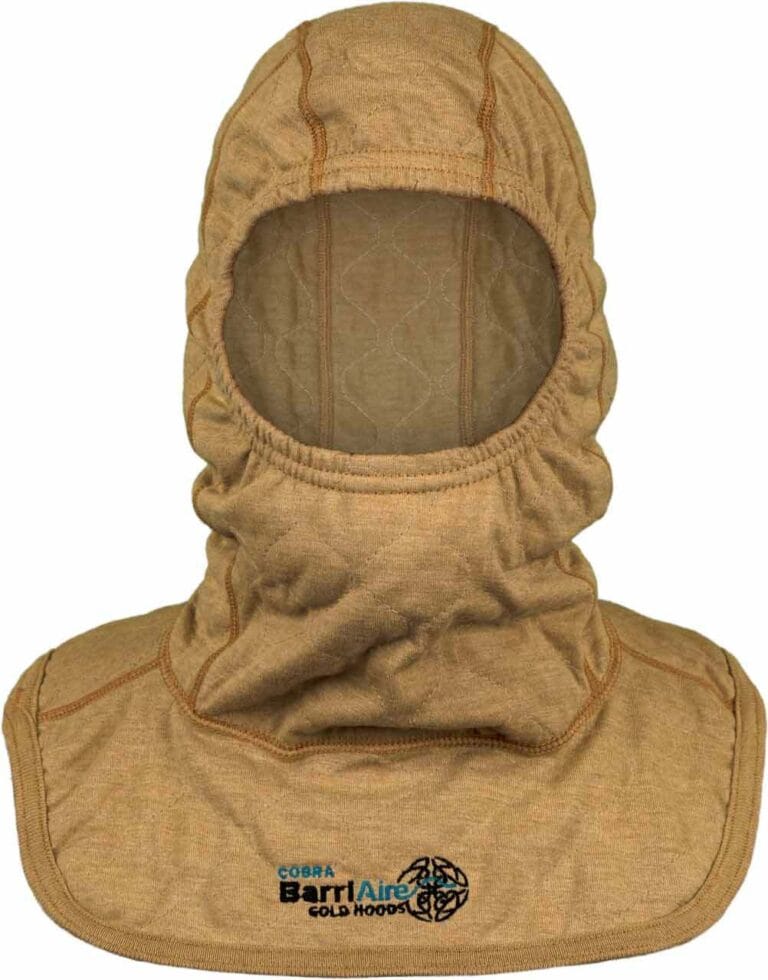

  • 39709 00 194071 BarriAire Front
Item Number: 39709-00-194071

BarriAire Gold Elite Pro Short Particulate Hood – Comprehensive Coverage

Certified to the New NFPA 1970 Standard

The PGI BarriAire Gold Elite Pro Short Particulate Hood Comprehensive Coverage is built for firefighters who want top-tier protection without sacrificing comfort or mobility. Its smart design—tapered back, notched shoulders, and a patterned bib—fits perfectly with turnout gear and SCBA straps, keeping everything in place and the mask sealed tight.

Sizes: One Size Fits Most
Find a Stockist
Gold Elite Pro Short Comprehensive Spec

Features

Details

HOOD DIMENSIONS – ONE SIZE HOOD FITS ALL

1. Sure-Fit™ panel 3” wide from top of face opening and extends to where bib is attached, in place of traditional center seam.
2. Quilted fabric extends to circular face opening, which is 4 ½” to 5 ½“ in diameter.
3. Width around bottom (½) approximately 21”.
4. Width around hood from edge of shoulder cap to opposite edge of shoulder cap, approximately 15 ¾”.
5. Front length of hood from top to bottom, approximately 19”.
6. Back length of hood from top to bottom, approximately 19 ¼”.
7. Width of hood above face opening, approximately 9 ½”.
8. Width of hood mid-face opening to back, approximately 8 ¾”.
9. Length of hood at side from top to bottom, approximately 17“.
10. Width of hood 1” below bottom of face opening approximately 10 ¾”.
11. Width of hood above shoulder cap, approximately 11”.
12. Length of hood below face opening, approximately 10.



Material

Stitch Types and Seams

  • All stitching conforms to Federal Standard 751 Specifications (FED-STD-751).
  • Major seams are flat seam assembled with stitch type 607.
  • Elastic around face opening is serged in with stitch type 504 and reinforced with bottom cover-stitch type 406.
  • Binding is applied with bottom cover-stitch type 406.

Construction

  • Completely redesigned hood which reduces excess fabric under chin to base of neck for a more comfortable fit and better interface with turnout coat collars; eliminates face opening pulling away from the bottom of SCBA mask when looking up.

  • The bib is narrowed down to avoid being “locked-down” by shoulder straps for air supply tank and bound with BarriAire Gold rib knit. The smaller bib also reduces bulk when worn with a turnout coat.

  • Entire structure of hood is made from quilted composite to maximise protection from harmful particulates.

  • Sure-Fit™ panel provides improved comfort, fit and performance. Three inch wide panel, begins at face opening, extends over the crown of head to the bib seam.

  • For contoured fit, hood is seamed from top of face opening to the bib seam, as well as from Sure-Fit™ panel down to bib, near coronal plane.

  • Face opening is circular and serged with x-heavy duty ½” elastic around the perimeter. The elastic is then folded under ½” and cover-stitched. The face opening stretches 25% more than conventional hoods for easy donning and a snug fit around face of SCBA mask.

  • Face opening maintains original shape after repeated laundering.

Performance Features

Meets or Exceeds Industry Standards

  • UL Classified to meet or exceed the current hood requirements of NFPA 1971, Standard on Protective Ensemble for Structural Firefighting.

  • UL Certified to the NFPA 1971, 2018 Edition Option for Particulate Protection.

  • Meets NFPA 70E and ASTM F1506 Requirements

Technology

Not Applicable
